Double-acting, air operated, medium pressure, heavy-duty pumps for dispensing lubricants in medium to large size installations, which may include simultaneous dispense points. Built in port for the included pressure relief valve kit. (3120-214)
Unit of Measure
Specifications
Manufacturer |
N/A Balcrank |
Brands |
N/A Balcrank |
Model |
N/A Lion™ 350 - 5:1 Pump |
Acceptable Mediums |
N/A Based Oils Gear Oil Hydraulic Oil Synthetic and Mineral Transmission Fluid |
Ratio |
N/A 5:1 |
Technical Data
Operating Air Pressure |
N/A 30 to 175 psi2 to 12 bar |
Air Consumption |
N/A 12.4 cfm350 nL/min |
Maximum Pressure |
N/A 170 psi12 bar |
Air Motor Effective Diameter |
N/A 3.25 in80 mm |
Air Motor Stroke |
N/A 3.15 in80 mm |
Delivery at 80 Cycles Per Minute (cpm) for 100 Pounds per Square Inch (psi) |
N/A 3.2 g/min |
Delivery at 80 Cycles Per Minute (cpm) for 5 bar |
N/A 12 L/min |

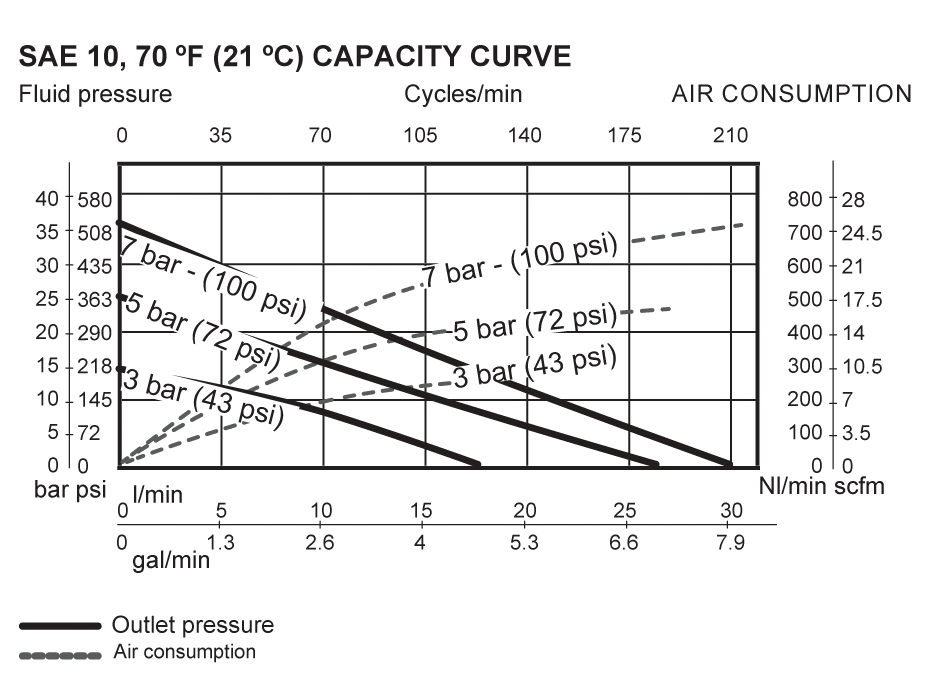

Flow Rate |
N/A 8 g/min30 L/min |
Air Inlet Size |
N/A 3/8 in |
Air Inlet Thread Type |
N/A National Pipe Tapered (NPT) Female |
Fluid Inlet Size (Stub Pump Only) |
N/A 1-1/2 in |
Fluid Inlet Port Thread Type |
N/A National Pipe Tapered (NPT) Female |
Fluid Outlet Size |
N/A 1/2 in |
Fluid Outlet Port Thread Type |
N/A National Pipe Tapered (NPT) Female |
Wetted Materials |
N/A Aluminum Hard Chromed Steel Nitrile Butadiene Rubber (NBR) Polyurethane Steel |
Service Bulletin |
N/A SB 1155 |
