Features
Corrosive resistant blue powder coat carbon steel
Integrated baffle
Expansion chamber
1/4"NPSC inlet/outlet taps (select models)
1"NPSC drain and sight port (1" BSPP)
Simplified vacuum package: 2 functions in 1 (liquid separator & inlet air filter)
Significant liquid/slurry holding capacity
Prevents emulsification of oil in oil lubricated systems
Corrosive resistant blue powder coat carbon steel
Integrated baffle
Expansion chamber
1/4"NPSC inlet/outlet taps (select models)
1"NPSC drain and sight port (1" BSPP)
Simplified vacuum package: 2 functions in 1 (liquid separator & inlet air filter)
Significant liquid/slurry holding capacity
Prevents emulsification of oil in oil lubricated systems
Unit of Measure
Specifications
Airflow |
N/A 100 scfm |
Micron Size |
N/A 5 µm |
Inlet and Outlet Connections |
N/A 1.5 in |
Connection Type |
N/A National Pipe Straight Coupling (NPSC) |
Capacity |
N/A 1.5 gal |

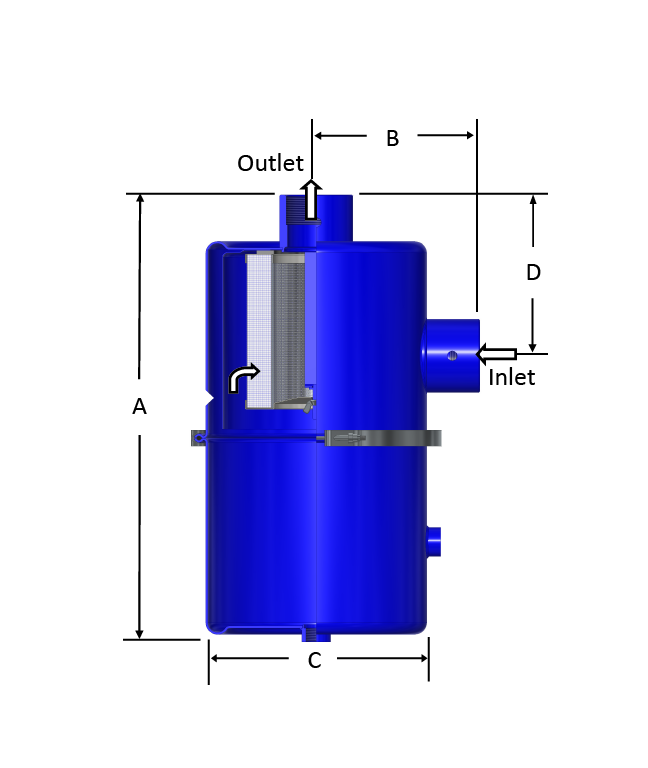

Dimension A |
N/A 18.00 in |
Dimension B |
N/A 0.75 in |
Dimension C |
N/A 7.69 in |
Dimension D |
N/A 3 in |
Replacement Element Kit |
N/A 19 |
