Republic offers a complete line of centrifugal blowers for vacuum or compressed air applications. Centrifugal blowers provide dry, clean, oil-free air and require low energy consumption. Unlike compressed air systems, this series is safe to run at low pressure, and allows for increased production speeds or levels.

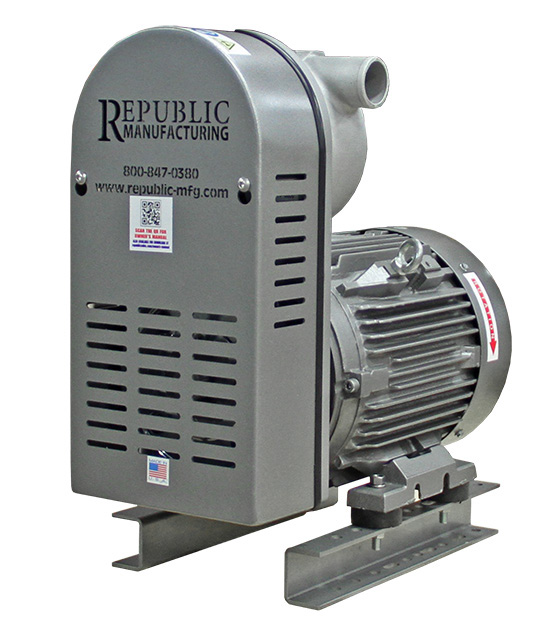

The RB1200HC is the most versatile of the centrifugal blower series. The blower comes with ceramic hybrid bearings, rotatable outlet discharge, easy to remove stainless steel bearing housing assembly, and zinc plated steel motor pulley.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Model

 N/A RB1200HC

Frequency

 N/A 50 Hz60 Hz

Power

 N/A 7.5 hp

Motor Frame Size

 N/A 213TC

Maximum Flow at 50 Hertz (Hz) Frequency

 N/A 675 ft³/min1147 m³/h

Maximum Flow at 60 Hertz (Hz) Frequency

 N/A 675 ft³/min1147 m³/h

Maximum Vacuum at 50 Hertz (Hz) Frequency

 N/A 98 in. H2O244 mbar

Maximum Vacuum at 60 Hertz (Hz) Frequency

 N/A 98 in. H2O244 mbar

Maximum Pressure at 50 Hertz (Hz) Frequency

 N/A 100 in. H2O250 mbar

Maximum Pressure at 60 Hertz (Hz) Frequency

 N/A 100 in. H2O250 mbar

Sound Level with Enclosure

 N/A 82 dB

Sound Level without Enclosure

 N/A 96 dB

Weight

 N/A 167 lb76 kg

Retro Kit Weight

 N/A 79 lb36 kg

Warranty

 N/A 1 year

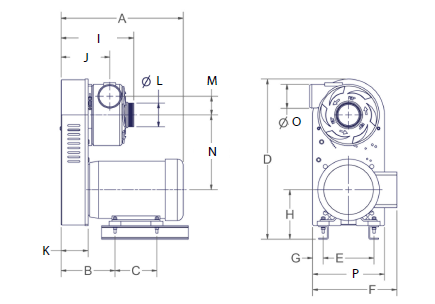

Dimensions

Dimension A

 N/A 20.00 in508 mm

Dimension B

 N/A 9.00 in229 mm

Dimension C

 N/A 5.50 in140 mm

Dimension D

 N/A 27.00 in679 mm

Dimension E

 N/A 8.50 in216 mm

Dimension F

 N/A 14.00 in357 mm

Dimension G

 N/A 1.75 in45 mm

Dimension H

 N/A 8.25 in210 mm

Dimension I

 N/A 12.00 in308 mm

Dimension J

 N/A 8.00 in206 mm

Dimension K

 N/A 4.50 in114 mm

Dimension L

 N/A 3.96 in101 mm

Dimension M

 N/A 3.00 in79 mm

Dimension N

 N/A 12.50 in318 mm

Dimension O

 N/A 4.00 in102 mm

Dimension P

 N/A 12.00 in305 mm

Available Options

N/A Republic Centrifugal Blowers are made to order, and can be customized to fit almost any application. Many common options and accessories are listed below. For additional options, please contact Republic or your local distributor.

Options

N/A Hard anodized bearing housing assembly Inlet and outlet flanges Water-cooled blower

Accessories

N/A Enclosures for noise control Exhaust silencer Starter panel Variable frequency drive
