Republic offers a complete line of centrifugal blowers for vacuum or compressed air applications. Centrifugal blowers provide dry, clean, oil-free air and require low energy consumption. Unlike compressed air systems, this series is safe to run at low pressure, and allows for increased production speeds or levels.
The RB500 is Republic’s smallest centrifugal blower, and is robust and hardworking. The blower comes with ceramic hybrid bearings, rotatable outlet discharge, easy to remove stainless steel bearing housing assembly, and zinc plated steel motor pulley.
The RB500 is Republic’s smallest centrifugal blower, and is robust and hardworking. The blower comes with ceramic hybrid bearings, rotatable outlet discharge, easy to remove stainless steel bearing housing assembly, and zinc plated steel motor pulley.
Unit of Measure
Specifications
Model |
N/A RB500 |
Frequency |
N/A 50 Hz60 Hz |
Power |
N/A 7.5 hp |
Motor Frame Size |
N/A 213TC |
Maximum Flow at 50 Hertz (Hz) Frequency |
N/A 465 ft³/min790 m³/h |
Maximum Flow at 60 Hertz (Hz) Frequency |
N/A 500 ft³/min850 m³/h |
Maximum Vacuum at 50 Hertz (Hz) Frequency |
N/A 38 in. H2O95 mbar |
Maximum Vacuum at 60 Hertz (Hz) Frequency |
N/A 71 in. H2O177 mbar |
Maximum Pressure at 50 Hertz (Hz) Frequency |
N/A 45 in. H2O112 mbar |
Maximum Pressure at 60 Hertz (Hz) Frequency |
N/A 97 in. H2O242 mbar |
Sound Level with Enclosure |
N/A 75 dB |
Sound Level without Enclosure |
N/A 82 dB |
Weight |
N/A 180 lb81 kg |
Retro Kit Weight |
N/A 50 lb23 kg |
Warranty |
N/A 1 year |

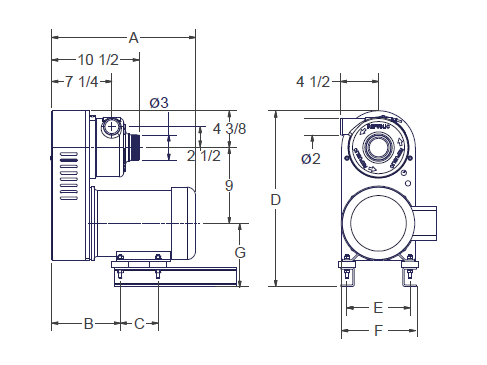

Dimensions
Dimension A |
N/A 20.13 in511 mm |
Dimension B |
N/A 8.38 in213 mm |
Dimension C |
N/A 5.50 in140 mm |
Dimension D |
N/A 21.69 in551 mm |
Dimension E |
N/A 8.50 in216 mm |
Dimension F |
N/A 10.00 in254 mm |
Dimension G |
N/A 8.50 in216 mm |
