Republic offers the DRT series of dry-running rotary vane compressors which are ideally suited for oil free applications. They are single stage, air-cooled and direct driven for continuous operation. These rugged compressors are simple to install and easy to service and maintain. The smaller compressors come with a motor integrated, while the larger compressors are available with or without motor. These compressors have a displacement ranging from 5 to 92 CFM (10 to 158 m3/hr) and a maximum pressure of 21 psig.

The DRT series is used in a variety of industries such as environmental applications, water treatment, aeration, electronics, conveying, and printing.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Model

 N/A DRT

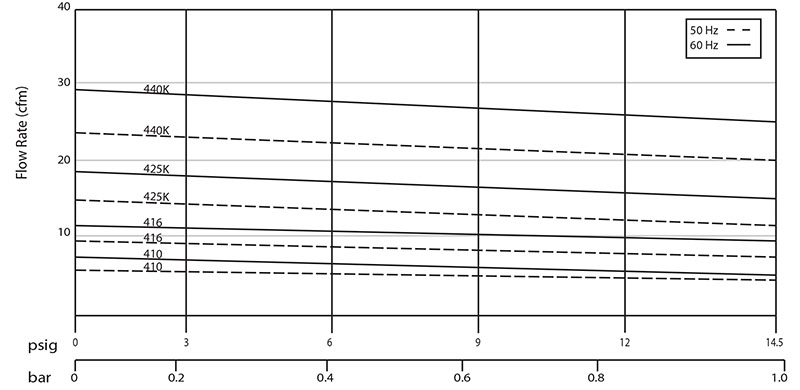

Displacement for 50 Hertz (Hz) Frequency

 N/A 23 ft³/min40 m³/h

Displacement for 60 Hertz (Hz) Frequency

 N/A 28 ft³/min48 m³/h

Maximum Pressure

 N/A 14.5 psig1.0 bar

Noise Level for 50 Hertz (Hz) Frequency

 N/A 67 dB

Noise Level for 60 Hertz (Hz) Frequency

 N/A 70 dB

Weight

 N/A 102 lb46 kg

Motor Output at 50 Hertz (Hz) Frequency and 3 Phase

 N/A 1.85 kW

Motor Output at 60 Hertz (Hz) Frequency and 3 Phase

 N/A 2.95 hp

Voltage at 50 Hertz (Hz) Frequency and 3 Phase

 N/A 190 to 290 V330 to 500 V

Voltage at 60 Hertz (Hz) Frequency and 3 Phase

 N/A 190 to 290 V330 to 500 V

Motor Output at 50 Hertz (Hz) Frequency and 1 Phase

 N/A 1.85 kW

Motor Output at 60 Hertz (Hz) Frequency and 1 Phase

 N/A 2.95 hp

Voltage at 50 Hertz (Hz) Frequency and 1 Phase

 N/A 230 V

Voltage at 60 Hertz (Hz) Frequency and 1 Phase

 N/A 230 V

Speed at 50 Hertz (Hz) Frequency

 N/A 1420 rpm

Speed at 60 Hertz (Hz) Frequency

 N/A 1700 rpm

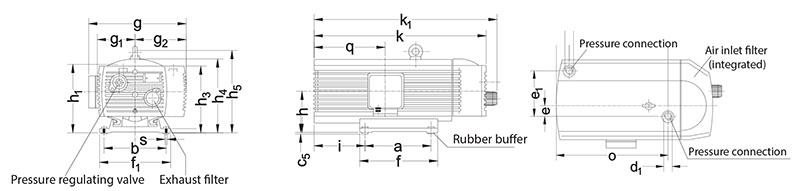

Dimensions

Dimension a

 N/A 87 in220 mm

Dimension b

 N/A 7.8 in198 mm

Dimension c5

 N/A 0.1 in3 mm

Dimension d1

 N/A 0.75 in

Dimension e

 N/A 5.1 in130 mm

Dimension f

 N/A 10.2 in260 mm

Dimension f1

 N/A 9.4 in238 mm

Dimension g

 N/A 12.9 in328 mm

Dimension g1

 N/A 6.8 in173 mm

Dimension g2

 N/A 6.8 in173 mm

Dimension h

 N/A 5.5 in140 mm

Dimension h1

 N/A 8.9 in227 mm

Dimension h4

 N/A 10 in253 mm

Dimension h5

 N/A 11.4 in290 mm

Dimension i

 N/A 7.0 in178 mm

Dimension k

 N/A 23.0 in585 mm

Dimension k1

 N/A 24.6 in625 mm

Dimension o

 N/A 2.2 in55 mm

Dimension q

 N/A 9.6 in245 mm

Dimension s

 N/A 0.3 in7 mm

Optional Accessories

N/A Inlet filter Inlet check valve Vacuum gauge Motor starter Control panel PLC

Note

N/A All measurements are ± 10%
