Specifications

Model

 N/A RXA-302

Phase

 N/A 3

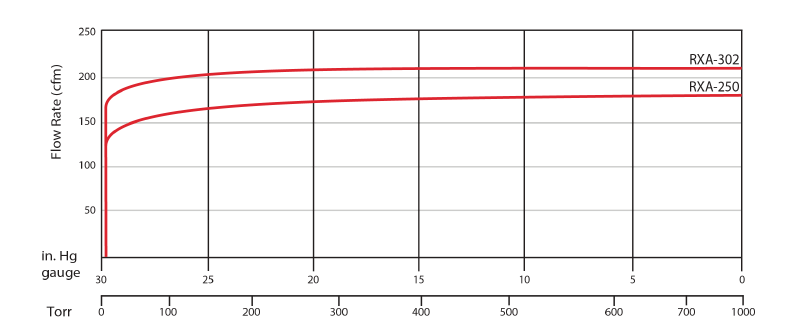

Displacement

 N/A 212 ft³/min

Ultimate Continuous Vacuum

 N/A 29.91 inHg0.075 Torr

Motor Output

 N/A 10.0 hp

Note for Motor Output

 N/A Uses a NEMA motor with a 1.25 service factor.

Motor Speed

 N/A 1800 rpm

Voltage

 N/A 230 V460 V

Full Load Current (FLA)

 N/A 1.25 A25.0 A

Noise Level

 N/A 78 dBA

Approximate Weight

 N/A 415 lb

Oil Capacity

 N/A 8 L

Inlet/Outlet Connection Size

 N/A 2.00 in

Inlet/Outlet Connections Type

 N/A National Pipe Thread (NPT)

Certifications

 N/A Canadian Underwriters Laboratories (cUL) European Conformity (CE) German Motor Vehicle Inspection Association (DEKRA) International Efficiency Class 3 (IE3)

Dimensions

Dimension A

 N/A 40.6 in

Dimension B

 N/A 21.7 in

Dimension C

 N/A 16.3 in

Dimension D

 N/A 14.2 in

Dimension E

 N/A 12.2 in

Features

N/A

  • Single stage, direct-driven
  • Air-cooled, no water required
  • Simple installation
  • Low noise levels
  • Compact design
  • Integral exhaust filter, oil free discharge air
  • Includes pressure gauge and gas ballast

Applications

N/A

  • Meat packaging
  • Food processing
  • Thermoforming
  • Composites
  • Medical
  • Laboratory
  • Vacuum cooling
  • Robotics
  • Degassing
  • Autoclaves

Optional Accessories

N/A Pre-Assembled Vacuum Kit Available (KVRXA-250 & KVRXA-302):Includes all plumbing, filtration, check-valves, regulating valves, and gauges required for quick installation and easy maintenance.

Note

N/A Please contact the factory for precise dimensions.
All measurements are ±10%. Standard motor is Class 1 Div 2.

Uses a NEMA motor with a 1.25 service factor.
