Republic offers a complete line of regenerative blowers for high vacuum or compressed air applications in both horizontal and vertical mounted positions. TEFC motors are rated for 50/60 Hz operation and are IE3, cUL, UL, and CE certified. The impeller is directly connected to the motor shaft, providing powerful air force without undue friction. The bearings are outside the compression chamber, ensuring maximum operational reliability under high differential pressure. Constructed in robust diecast aluminum, this low-maintenance, oil-free design provides continuous, dependable service to our customers.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Model

 N/A 4RC320

Phase

 N/A 1

Frequency

 N/A 50 Hz60 Hz

Air Flow at 50 Hertz (Hz) Frequency

 N/A 38 ft³/min65 m³/h

Air Flow at 60 Hertz (Hz) Frequency

 N/A 45 ft³/min76 m³/h

Rated Vacuum at 50 Hertz (Hz) Frequency

 N/A 161 in. H2O400 mbar

Rated Vacuum at 60 Hertz (Hz) Frequency

 N/A 157 in. H2O390 mbar

Rated Pressure at 50 Hertz (Hz) Frequency

 N/A 221 in. H2O550 mbar

Rated Pressure at 60 Hertz (Hz) Frequency

 N/A 217 in. H2O540 mbar

Motor Power at 50 Hertz (Hz) Frequency

 N/A 2.0 hp1.5 kW

Motor Power at 60 Hertz (Hz) Frequency

 N/A 2.3 hp1.7 kW

Voltage at 50 Hertz (Hz) Frequency

 N/A 230 V

Voltage at 60 Hertz (Hz) Frequency

 N/A 115 V230 V

Current at 50 Hertz (Hz) Frequency

 N/A 9.7 A

Current at 60 Hertz (Hz) Frequency

 N/A 10.3 A20.6 A

Sound Level

 N/A 63 dB

Weight

 N/A 79 lb36 kg

Thread Diameter (P)

 N/A 1.25 in

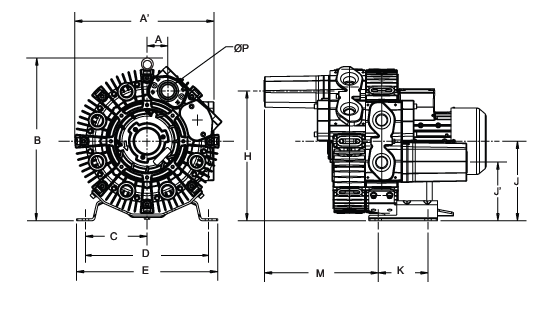

Dimensions

Dimension A

 N/A 1.85 in47 mm

Dimension A'

 N/A 13.03 in331 mm

Dimension B

 N/A 14.96 in380 mm

Dimension C

 N/A 4.49 in114 mm

Dimension D

 N/A 4.09 in104 mm

Dimension E

 N/A 12.80 in325 mm

Dimension H

 N/A 11.46 in291 mm

Dimension J

 N/A 6.97 in177 mm

Dimension J'

 N/A 5.12 in130 mm

Dimension K

 N/A 4.13 in105 mm

Dimension M

 N/A 9.57 in243 mm

Certification

Certification

 N/A Canadian Underwriters Laboratories (cUL) European Conformity (CE) International Efficiency Class 3 - CC339B (IE3) Underwriters Laboratories Recognized Component for Canada (c) and United States (us)) - E493872

Available Options

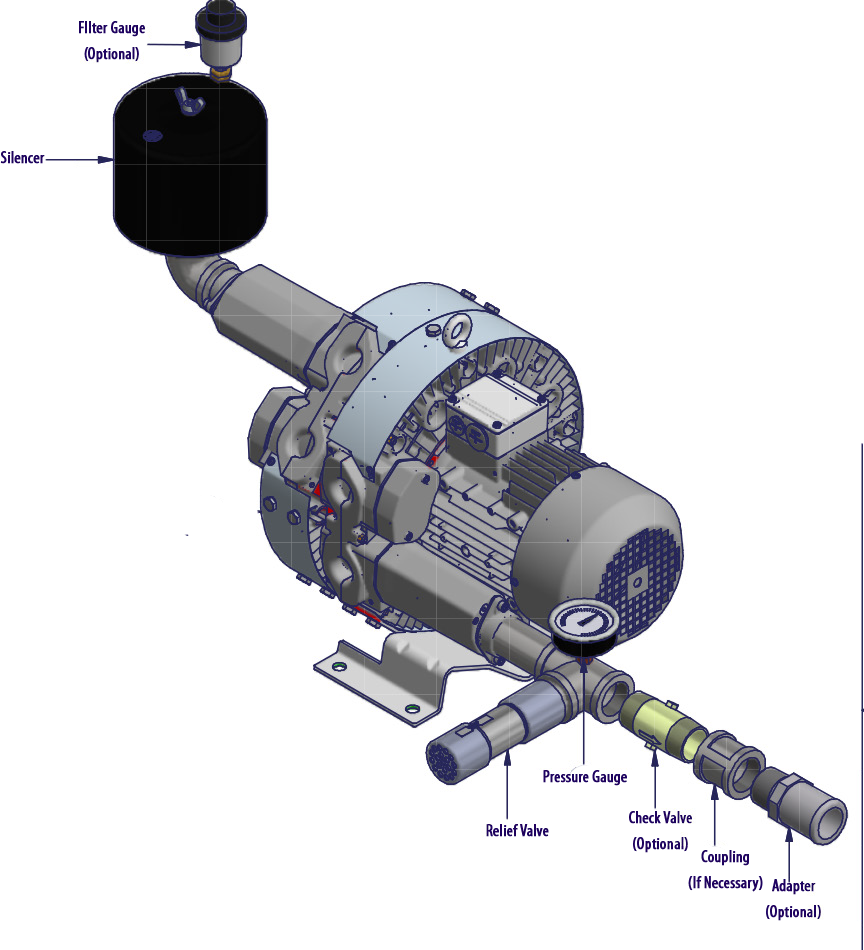

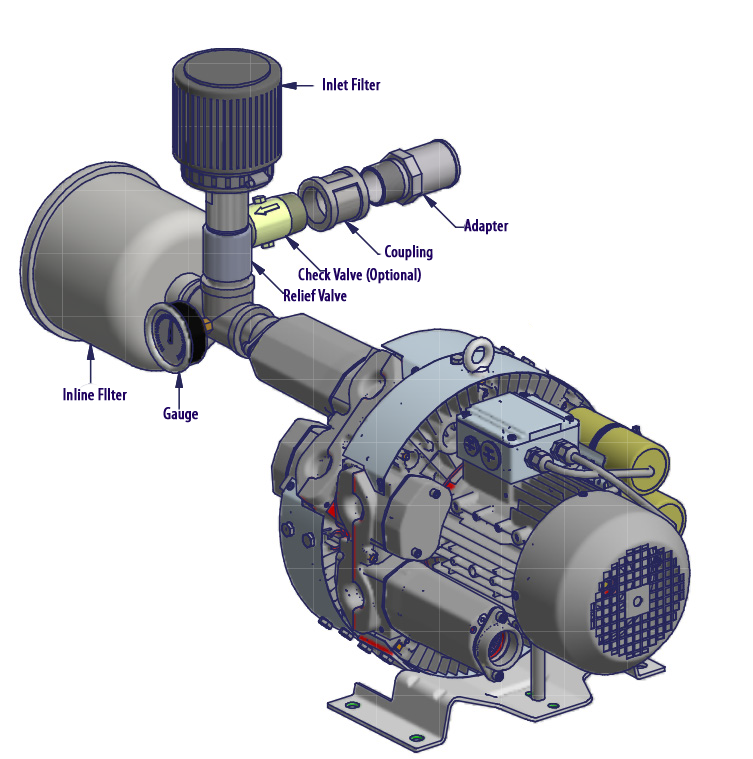

N/A All Republic Regenerative Blowers are available in pre-assembled kits for either pressure or vacuum applications. These kits include an inlet filter, gauge and relief valve, and are factory tested prior to shipment. Optional items for these kits include check valve, and tube adaptor; washdown motors, explosion proof motors, or other specialty motors; noise enclosures; and control panels such as VFD's, PLC's, or starter panels.

Note

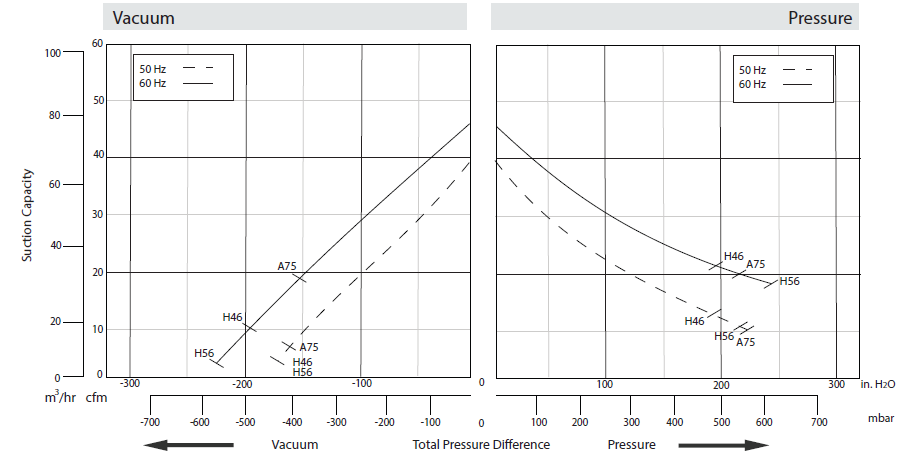

N/A The performance curves are based on air at a temperature of 59 ºF and an atmospheric pressure of 29.91 inch Hg with a tolerance of ±10%. The total pressure differences are valid for inlet and ambient temperatures up to 77 ºF. Suction capacity relates to inlet conditions. Pressure capacity relates to atmospheric conditions. For other conditions please contact Republic. Three phase motor tolerances are ±10% for fixed voltage motors and ±5% for voltage range motors. Single phase machines are designed with a ±5% tolerance. The frequency tolerance is ±2% maximum.
