High Pressure Desiccant Air Dryers - Nano
High Pressure Desiccant Air Dryers - Nano

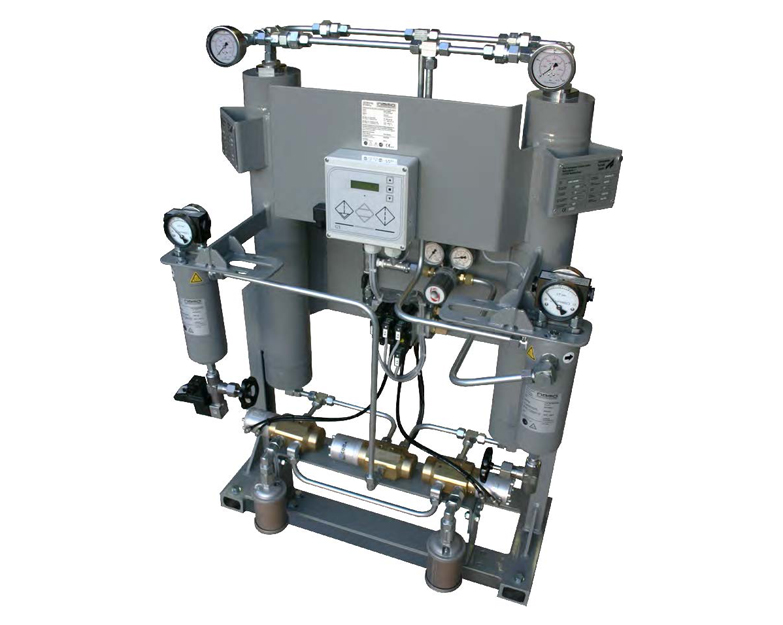

The advanced nano D-Series4 DHP high pressure twin tower desiccant compressed air dryer combines reliable field proven components and a cost effective design with 21st century controls and a digital user interface. For clean dry air, there is no better, more dependable, easier to use twin tower dryer available on the market today.
Item # |
Item Name |

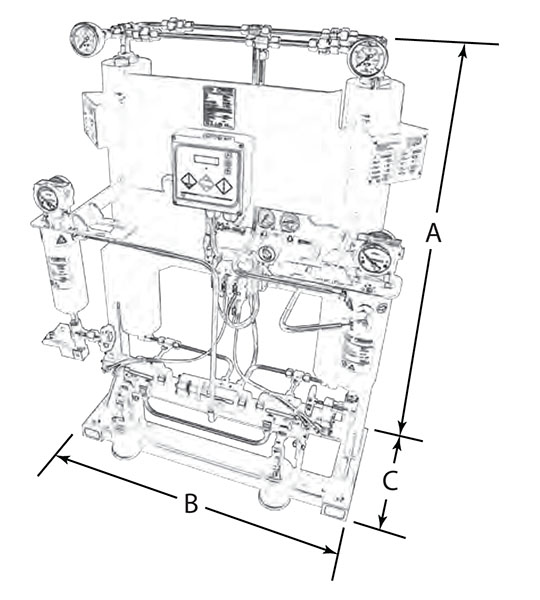

Dimension A |
Dimension B |
Dimension C |
Inlet and Outlet Connection Size |
Flow Capacity |
Web Price |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| DHP5/100 /Asset/a3150.jpg | N/A 42 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 45.5 in | Dimension B N/A 25 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 1/2 in | Flow Capacity N/A 72 Nm³/h42 scfm | Quote |
Add To Cart
Request Quote |
| DHP9/100 /Asset/a3150.jpg | N/A 51 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 47.5 in | Dimension B N/A 25 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 1/2 in | Flow Capacity N/A 87 Nm³/h51 scfm | Quote |
Add To Cart
Request Quote |
| DHP12/100 /Asset/a3150.jpg | N/A 90 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 48 in | Dimension B N/A 27 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 1/2 in | Flow Capacity N/A 153 Nm³/h90 scfm | Quote |
Add To Cart
Request Quote |
| DHP24/100 /Asset/a3150.jpg | N/A 167 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 53.2 in | Dimension B N/A 29.1 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 3/4 in | Flow Capacity N/A 283 Nm³/h167 scfm | Quote |
Add To Cart
Request Quote |
| DHP37/100 /Asset/a3150.jpg | N/A 252 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 16.2 in | Dimension B N/A 31.9 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 3/4 in | Flow Capacity N/A 429 Nm³/h252 scfm | Quote |
Add To Cart
Request Quote |
| DHP58/100 /Asset/a3150.jpg | N/A 442 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 67.3 in | Dimension B N/A 34.3 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 3/4 in | Flow Capacity N/A 750 Nm³/h442 scfm | Quote |
Add To Cart
Request Quote |
| DHP5/250 /Asset/a3150.jpg | N/A 68 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 45.5 in | Dimension B N/A 25 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 1/2 in | Flow Capacity N/A 115 Nm³/h68 scfm | Quote |
Add To Cart
Request Quote |
| DHP9/250 /Asset/a3150.jpg | N/A 82 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 47.5 in | Dimension B N/A 25 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 1/2 in | Flow Capacity N/A 140 Nm³/h82 scfm | Quote |
Add To Cart
Request Quote |
| DHP12/250 /Asset/a3150.jpg | N/A 159 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 48 in | Dimension B N/A 27 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 1/2 in | Flow Capacity N/A 270 Nm³/h159 scfm | Quote |
Add To Cart
Request Quote |
| DHP24/250 /Asset/a3150.jpg | N/A 294 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 53.2 in | Dimension B N/A 29.1 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 3/4 in | Flow Capacity N/A 500 Nm³/h294 scfm | Quote |
Add To Cart
Request Quote |
| DHP37/250 /Asset/a3150.jpg | N/A 471 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 16.2 in | Dimension B N/A 31.9 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 3/4 in | Flow Capacity N/A 800 Nm³/h471 scfm | Quote |
Add To Cart
Request Quote |
| DHP58/250 /Asset/a3150.jpg | N/A 824 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 67.3 in | Dimension B N/A 34.3 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 3/4 in | Flow Capacity N/A 1400 Nm³/h824 scfm | Quote |
Add To Cart
Request Quote |
| DHP5/350 /Asset/a3150.jpg | N/A 88 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 45.5 in | Dimension B N/A 25 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 1/2 in | Flow Capacity N/A 150 Nm³/h88 scfm | Quote |
Add To Cart
Request Quote |
| DHP9/350 /Asset/a3150.jpg | N/A 106 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 47.5 in | Dimension B N/A 25 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 1/2 in | Flow Capacity N/A 180 Nm³/h106 scfm | Quote |
Add To Cart
Request Quote |
| DHP12/350 /Asset/a3150.jpg | N/A 177 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 48 in | Dimension B N/A 27 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 1/2 in | Flow Capacity N/A 300 Nm³/h177 scfm | Quote |
Add To Cart
Request Quote |
| DHP24/350 /Asset/a3150.jpg | N/A 309 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 53.2 in | Dimension B N/A 29.1 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 3/4 in | Flow Capacity N/A 525 Nm³/h309 scfm | Quote |
Add To Cart
Request Quote |
| DHP37/350 /Asset/a3150.jpg | N/A 500 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 16.2 in | Dimension B N/A 31.9 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 3/4 in | Flow Capacity N/A 850 Nm³/h500 scfm | Quote |
Add To Cart
Request Quote |
| DHP58/350 /Asset/a3150.jpg | N/A 918 scfm nano D-Series4 High Pressure Twin Tower Desiccant Compressed Air Dryer | Dimension A N/A 67.3 in | Dimension B N/A 34.3 in | Dimension C N/A 15.8 in | Inlet and Outlet Connection Size N/A 3/4 in | Flow Capacity N/A 1560 Nm³/h918 scfm | Quote |
Add To Cart
Request Quote |
